IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety

एमओक्यू: 1
कीमत: Customized
स्टैंडर्ड पैकेजिंग: प्लाईवुड मामले
प्रसव अवधि: 30 दिन
भुगतान विधि: टी/टी
आपूर्ति क्षमता: प्रति माह 10 सेट
विस्तार से जानकारी
उत्पत्ति के प्लेस
चीन
ब्रांड नाम
Sinuo
प्रमाणन
Calibration Certificate(Cost Additional )
मॉडल संख्या
SN2122
चौंकाने वाले तत्व:
2 जे, 5 जे, 10 जे, 20 जे, 50 जे) वैकल्पिक)
तत्व सामग्री:
उच्च गुणवत्ता वाला स्टील
रिलीज विधि:
मैनुअल रिलीज
गिरने की ऊंचाई:
समायोज्य 0-500 मिमी
उत्पाद का वर्णन

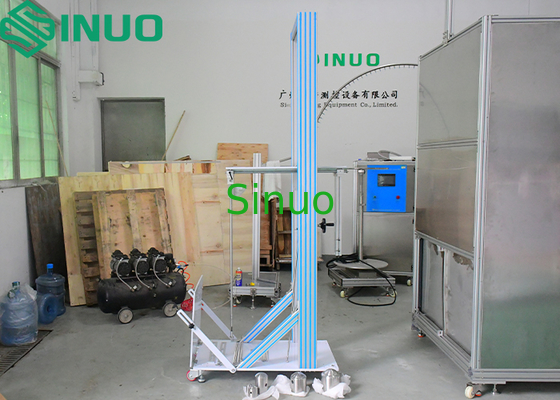

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety





Product information:



This impact test apparatus is designed to evaluate the impact resistance and safety performance of household and similar electrical products and their accessories, including plugs, sockets, wall-mounted boxes, screw glands, covers, switches, and luminaires. It ensures compliance with international standards including IEC60068-2-75:2014, IEC60598-1:2017 ,

IEC62262:2002,etc.



Technical Parameters:



Striking Elements (Energy/J)

Optional: 2J (IK07), 5J (IK08), 10J(IK09),20J(IK10), 50J(IK11)

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety 0

Equivalent Mass

kg

0.5 kg, 1.7 kg, 5 kg, 10 kg (supports various hammer heads)

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety 1

Striking Elements Material Steel
Pendulum Tube Length 1000㎜,outer diameter 10mm and 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point Stroke: 200-1200mm, up and down adjustable by rotating the handwheel manually
Height of Fall IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety 2
Striking Element Fix and Release Mechanical latch fixation and manual release
Way of moving Equipped with casters for easy movement and positioning

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety 3
