| एमओक्यू: | 1 |
| कीमत: | विनिमय योग्य |
| स्टैंडर्ड पैकेजिंग: | दफ़्ती |
| प्रसव अवधि: | 30 दिन |
| भुगतान विधि: | टी/टी |
| आपूर्ति क्षमता: | प्रति माह 30 सेट |

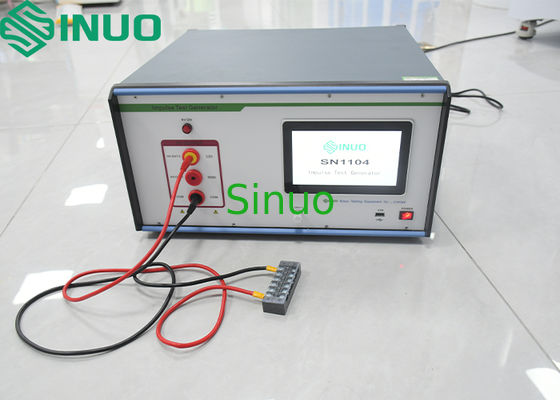

| Model | SN1104 |
|---|---|
| DC high voltage | Max. 12.5kV |
| Impulse voltage wave |
Impulse wavefront time: 1.2 µs ± 30%; Half value of after wave time: 50 µs ± 20% (waveform can be checked with external oscilloscope) |
| Instrument internal resistance | 12Ω ± 10%, 500Ω ± 10% |
| Peak voltage | Low: 300 V~ 2,500V High: 2,500 V~ 12,500V |
| Impact interval time | 5 ~ 99s |
| Impact cycles | 1 ~ 9999 |
| Polarity | Positive and negative |
| Working power source | Rated voltage: ~ 220V±10%, 50Hz |
| Dimension | 430mm×180mm×480mm |
| Weight | 20 KG |
|
|
