IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine

एमओक्यू:	1
कीमत:	विनिमय योग्य
स्टैंडर्ड पैकेजिंग:	प्लाईवुड मामले
प्रसव अवधि:	30 दिन
भुगतान विधि:	टी/टी
आपूर्ति क्षमता:	5 प्रति माह

विस्तार से जानकारी

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस

ब्रांड नाम

Sinuo

प्रमाणन

Calibration Certificate (Cost Additional)

मॉडल संख्या

एसएन1901सी

दबाव सीमा:

0-2000 एन

लोड सेंसर सटीकता:

कक्षा 0.5

परीक्षण आवृत्ति:

10-20 चक्र/मिनट

सिलिंडर व्यास:

Φ50 मिमी

सिलेंडर स्ट्रोक:

125 मिमी

बल समय:

0–99.9 सेकेंड समायोज्य

चक्र काउंटर:

0–999999 प्रोग्रामयोग्य

उद्घाटन कोण:

≥70° समायोज्य

प्रमुखता देना:

IEC 60335-2-84 toilet seat test machine

toilet seat cover durability tester

mechanical strength testing equipment for toilet seats

उत्पाद का वर्णन

IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine

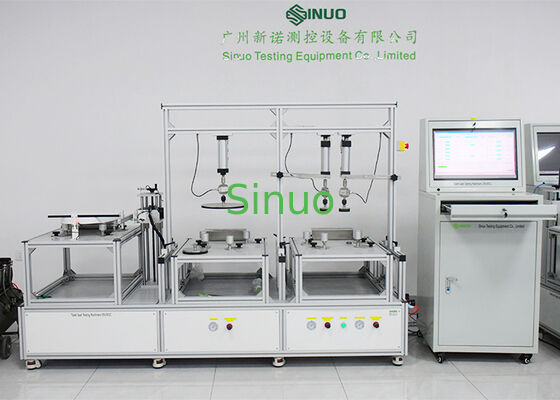

The Toilet Seat Cover Mechanical Strength and Durability Testing Machine is specially designed to evaluate the mechanical performance and service life of toilet seats and covers used in intelligent toilet appliances and sanitary products. This equipment simulates real operating conditions including opening and closing cycles, impact loads, static pressure, and side forces to verify the structural reliability of toilet seat assemblies.

Developed in accordance with IEC 60335-2-84 requirements, this testing system ensures that toilet seat components used in household and similar appliances meet international safety and durability standards. The machine features a servo motor drive system combined with computer and software control, enabling precise control of force, motion angle, and testing cycles.

Main Test Functions

Opening and Closing Life Cycle Test: Repeatedly opens and closes toilet seat and cover to preset angles to simulate long-term daily usage, evaluating hinge durability and structural stability
Slow Closing Performance Test: Measures closing time to evaluate damping mechanism and soft-closing performance
High Pressure Test: Forces seat cover to open and close repeatedly under controlled conditions to assess slow-drop mechanism reliability
Static Load Strength Test: Applies vertical load through steel and rubber pressing device to simulate user weight
Impact Resistance Test: Applies repetitive dynamic loads to toilet seat surface at specified frequency
Side Force Durability Test: Applies up to 890 N force alternately to both sides of seat to simulate uneven loads

Key Features

Designed according to IEC 60335-2-84 international testing standard
Computer and software control system for easy parameter setting
High-precision servo motor drive ensures stable motion control
Multiple independent test stations for improved testing efficiency
Adjustable test parameters including force, angle, and cycle times
High accuracy load sensor (0-2000N, class 0.5)
Strong aluminum frame structure for long-term laboratory use
Automatic data recording and real-time monitoring

Technical Specifications

Parameter	Specification
Test Stations	Three independent stations
Pressure Range	0-2000 N
Load Sensor Accuracy	Class 0.5
Test Frequency	10-20 cycles/min
Cylinder Diameter	Φ50 mm
Cylinder Stroke	125 mm
Force Angle	Adjustable
Force Time	0-99.9 s adjustable
Opening Angle	≥70° adjustable
Motor	400 W servo motor
Control Method	Computer + software control
Structure	Aluminum frame with test platform
Cycle Counter	0-999999 programmable
Power Supply	AC220V 60Hz
Equipment Size	Approx. 2500 × 700 × 1400 mm

Frequently Asked Questions

What standard is used for toilet seat mechanical strength testing?

The testing equipment is designed according to IEC 60335-2-84, which specifies safety requirements for toilet appliances and their mechanical components.

What tests can this machine perform?

The machine can perform opening and closing durability tests, slow closing performance tests, static load tests, impact resistance tests, and side force strength tests.

What control system does the equipment use?

The equipment uses a computer and dedicated software control system, allowing precise parameter adjustment and automatic data recording.

Who typically uses this equipment?

The machine is widely used by toilet seat manufacturers, appliance laboratories, and certification testing institutions.

Product Images
