| एमओक्यू: | 1 |
| कीमत: | विनिमय योग्य |
| स्टैंडर्ड पैकेजिंग: | प्लाईवुड मामले |
| प्रसव अवधि: | 30 दिन |
| भुगतान विधि: | टी/टी |
| आपूर्ति क्षमता: | 10 प्रति माह |

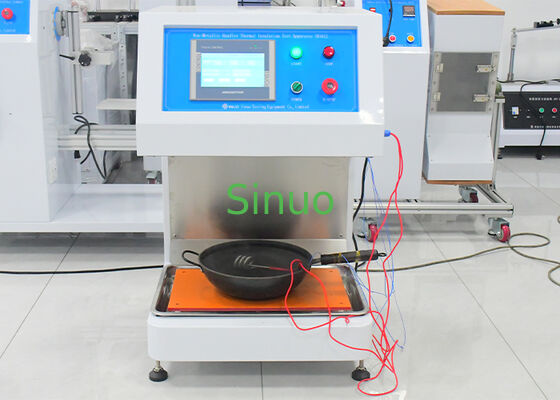

| Parameter | Specification |
|---|---|
| Control | PLC control, 7" touch screen operation |
| Station | Single station |
| Platform size | 400mm × 400mm |
| Temperature recording channel | 4 channels (A point, B point, Ambient temperature, Reserve) |
| Heating temperature | Rt ~ 100°C |
| Temperature measuring method | By means of thermocouples fixed to points A and B indicated in figure 1 |
| Test time | 0-99H99M99S, can be preset on touch screen |
| Electric heating coil | Electric heating coil material: copper. The electric heating coil can be immersed in water. The electric heating coil on/off will be controlled to be capable of heating water till boiling through duration time from 15 min to 20min |
| Temperature recording | Touch screen display, Temperature and time can be displayed |
| Power supply | AC220V, 50Hz, 3kW |
वीडियो
वीडियो
|
|
| एमओक्यू: | 1 |
| कीमत: | विनिमय योग्य |
| स्टैंडर्ड पैकेजिंग: | प्लाईवुड मामले |
| प्रसव अवधि: | 30 दिन |
| भुगतान विधि: | टी/टी |
| आपूर्ति क्षमता: | 10 प्रति माह |
| Parameter | Specification |
|---|---|
| Control | PLC control, 7" touch screen operation |
| Station | Single station |
| Platform size | 400mm × 400mm |
| Temperature recording channel | 4 channels (A point, B point, Ambient temperature, Reserve) |
| Heating temperature | Rt ~ 100°C |
| Temperature measuring method | By means of thermocouples fixed to points A and B indicated in figure 1 |
| Test time | 0-99H99M99S, can be preset on touch screen |
| Electric heating coil | Electric heating coil material: copper. The electric heating coil can be immersed in water. The electric heating coil on/off will be controlled to be capable of heating water till boiling through duration time from 15 min to 20min |
| Temperature recording | Touch screen display, Temperature and time can be displayed |
| Power supply | AC220V, 50Hz, 3kW |
