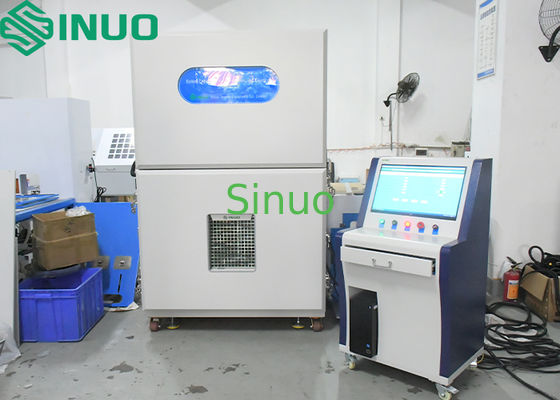

Vehicle Battery Testing Equipment Crush And Penetration Test SAE J2464

एमओक्यू:	1
कीमत:	विनिमय योग्य
स्टैंडर्ड पैकेजिंग:	प्लाईवुड मामले
प्रसव अवधि:	40 दिन
भुगतान विधि:	टी/टी
आपूर्ति क्षमता:	प्रति माह 5 सेट

विवरण सूचना

उत्पाद का वर्णन

विस्तार से जानकारी

उत्पत्ति के प्लेस

ब्रांड नाम

Sinuo

प्रमाणन

Calibration Certificate(Cost Additional)

मॉडल संख्या

SN554B-30T

परीक्षण स्थान:

1000×1000×1000मिमी

अभियान विधि:

सर्वो मोटर +इलेक्ट्रिक सिलेंडर ड्राइव

दबाव सीमा:

1KN～300kN, सेंसर की अधिकतम सीमा 306kN

दबाव सटीकता:

± 1% एफएस

दबाव धारण करने का समय:

0~99min59s, सेट किया जा सकता है

क्रश एक्यूपंक्चर गति:

0.1-83मिमी/सेकंड (समायोज्य)

प्रमुखता देना:

Vehicle battery crush test equipment

SAE J2464 penetration tester

Battery testing equipment with warranty

उत्पाद का वर्णन

Vehicle Battery Testing Equipment Crush And Penetration Test SAE J2464

Product Information

Standard: Conforms to SAE J2464 Standard (Clause 4.3.3.1: Penetration Test; Clause 4.3.6.1: Crush Test), AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a), IEC62133-2012, IS0 12405-4:2018, etc.

Features

The test software has a voltage acquisition function: automatically collects battery voltage changes during testing and stops when voltage reaches zero.
Three test modes (pressure, deformation, and voltage) can be used as control variables in any combination.
Computer operating system with Windows dialog box interface provides data saving, comparison and tracking functions.
Dedicated test control motherboard records force, displacement and voltage simultaneously with real-time monitoring.
Test can be controlled by collecting voltage signals - stops when set voltage value is reached.
Displays test speed and allows speed setting in computer software.
Three test conditions (pressure, deformation, voltage) can be set simultaneously - stops when any condition is met.

Environmental Requirements

Power supply: AC380(1±10%)V (50±0.5)Hz three-phase four-wire with protective ground wire
Installation site requirements: flat ground, good ventilation, no strong vibration or electromagnetic fields
Environmental conditions: Temperature: 20℃±5℃; Relative humidity: ≤85%RH; Atmospheric pressure: 80kPa～106kPa
Ground load-bearing capacity: ≥650kg/m² (for equipment weight ≤500kg)
Maintenance space: ≥600mm around equipment for access and door operation

Technical Parameters

Parameter	Specification
User battery cell size	Maximum size (length x width x height): 300300250mm, weight: 18kg-30kg
Test space	1000×1000×1000mm (width, depth and height)
Dimensions	1200×1500×1850mm (width, depth and height, subject to actual design)
Pressure range	1KN～300kN, sensor maximum range 306kN
Crush acupuncture speed	0.1-83mm/s (adjustable)
Steel needle specifications	Φ3mm, Φ4mm, Φ5mm, Φ6mm, Φ8mm, Φ20mm; Length: 200mm; Material: Heat Treatment of Steel
Crush head	R75250mm semi-cylinder, 2R75250mm semi-cylinder, flat crush head
Temperature acquisition	Range 0～+1000℃; Resolution: 0.1℃; Accuracy: ±0.5℃
Voltage acquisition	Range: 0~100V; Accuracy: ≤±0.5%FS; Resolution: 10mV
Power	25KW, 380V power supply
Weight	Approx. 800kg

Configuration List

No.	Name	Brand
1	Crush/acupuncture system	Sinuo
2	Crush/acupuncture test software	-
3	2 sets of crush fixtures/1 set of acupuncture fixture/2 sets of steel needles	-
4	Computer	HP or equivalent
5	Force sensor	Keli
6	Electric cylinder	ECY

Control Software Function

Function Type	Description
Device parameter setting	Pressure, Speed, Displacement (deformation), Holding time, Cut-off condition
Real-time parameter display	Pressure, Displacement, Temperature, Voltage, Pressure and time curve
Operation options	Test start/stop, Manual forward/backward/stop, Zero reset, Data recording, Save data (EXCEL, curve chart)
Other functions	Data protection during power failure, Automatic reset, Multiple stop condition options

Safety Protection

Reliable grounding system
Emergency stop switch on control panel
Threshold protection: stops when test chamber door is opened
Input protection: undervoltage, overvoltage, overcurrent, phase loss protection
Operator protection: control system separated from test box for safety

Explosion-proof Measures

Doors equipped with 6mm diameter explosion-proof chains and explosion-proof nets
Pressure relief port automatically releases pressure if exceeds 1KG
Top-mounted exhaust port for gas discharge
